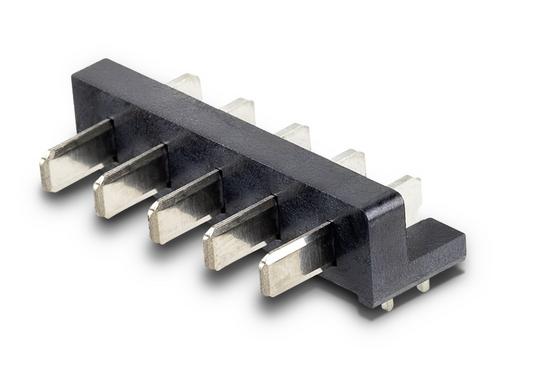

RRC-MC20-90-10
Connecteur d'accouplement pour batteries
- Convient aux blocs-batteries standard RRC20xx
- Courant de charge et de décharge de la batterie de 10.00A max.
- Connecteur mâle à 5 broches
- Pas de 5 mm
- Compatible RoHS et REACH
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-MC20-90-10
Fiche produit RRC-MC20-90-10
Specifications
| Ratings | |
|---|---|
| Current | 10.00A max. / pin |
| Voltage | 125.00VAC / 1min |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | 80µin Nickel on contact area |
| Operating Temperature | -55°C to +105°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.03Ohm max. |
| Insulation Resistance | 0.10Ohm min. at 500VDC/2min |
| Dielectric withstanding voltage | 500.00V |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 500g min. / pin |
| Durability | 5000 cycles |
| Dimensions (LxWxH) | 27.00mm x 13.70mm x 9.90mm |
| Weight | 3g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec (EIA-364-56C) |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC20-90-10 | |
|---|---|
| RRC part number | 210519 |
| PCB mounting | 90° |
| Packaging | |
|---|---|
| 22 connectors per tube | |
| 77 tubes per carton | |
