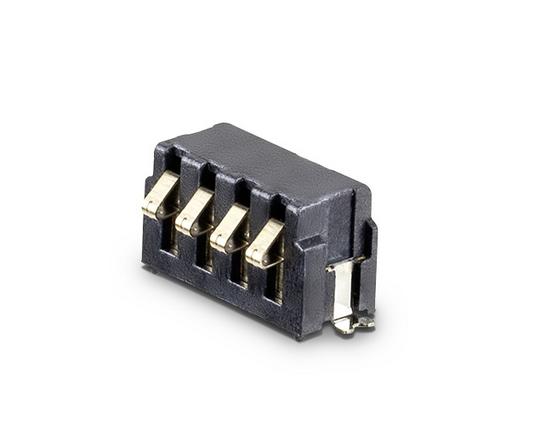

RRC-MC11-90-2
Connecteur d'accouplement pour batteries
- Convient aux blocs-batteries standard RRC1120, RRC1130
- Courant de charge et de décharge de la batterie de 3.00A max.
- Connecteur mâle à 4 broches avec contacts à ressort
- Pas de 2,5 mm
- Compatible RoHS et REACH
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-MC11-90-2
Fiche produit RRC-MC11-90-2
Specifications
| Ratings | |
|---|---|
| Current | 3.00A max. / pin |
| Voltage | 12.00VDC |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | G/F on contact area |
| Operating Temperature | -40°C to +105°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.04Ohm max. |
| Insulation Resistance | 0.10Ohm min. @ 500VDC / 2min |
| Dielectric withstanding voltage | No breakdown @ 500V RMS |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 300gf min. / pin |
| Dimensions (LxWxH) | 11.50mm x 5.0mm x 6.5mm |
| Weight | <1g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec (EIA-364-56C) |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC11-90-2 | |
|---|---|
| RRC part number | 210520 |
| PCB mounting | SMT 90° |
| Packaging | |
|---|---|
| 700 connectors per reel | |
| 7 reels per carton | |
