RRC-SMB-FPC

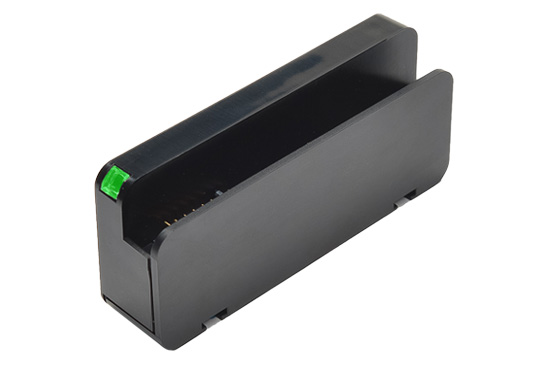

Chargeur de batterie 40W pour RRC2130, RRC2140
- Chargeur de batterie à une baie
- Convient aux blocs-batteries standard RRC2130 et RRC2140
- Processus de charge optimisé pour les batteries RRC :
- Cycles de charge plus longs
- Charge plus rapide
- Facile à utiliser – Plug & Play
- Alimentation externe enfichable pour une utilisation dans le monde entier
- Câbles d'entrée AC adaptés à chaque pays disponibles sur demande
Vous souhaitez obtenir plus d'informations ?
Fiche produit RRC-SMB-FPC
Specification RRC-SMB-FPC
| Input | |
|---|---|
| Voltage | 18.00 - 26.00VDC |
| Current | 2.50A max. |
| Power | 40.00W |
| Protection | Over current (fuse protected), under voltage |
| Output | |
|---|---|
| Voltage range | 0 - 17.40VDC |
| Current range | 0 - 4.00A |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1.00A, ±3% max. @4.00A |
| Protection | Short circuit, Over temperature shutdown, Input/output over current |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: 0°C bis 40°C |
| Pressure & Altitude | Operating: 1060hPa to 795hPa (-382m to 2000m) |
| Humidity | Operating: 8% to 90% r.H. Non-operating: 5% to 95% r.H. |
| General | |
|---|---|
| Efficiency | ~95% at 100% load |
| Indicator | Multi-color LED (green, red, orange) |
| Battery type | Standard battery packs RRC2130 and RRC2140 |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU Chinese RoHS |
| Housing dimensions (LxWxH) | 88.50 x 38.50 x 19.90mm |
| Weight | 36g (excluding power supply) |
One time Red/Orange/Green | Selftest: Charger is ready for use |
Red/Green blinking | Battery recognition and initialization |
Orange light | The inserted battery is of the correct type and is currently being charged |
Green light | The battery is charged and can be removed for use |
Red blinking | Battery detection phase |
Red light | No battery inserted, battery over/under temperature-, charger over temperature-, |
In combination with included external AC/DC power supply (PS65) | ||
Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
Electromagnetic Emissions | Europe | EN55032 |
| USA | FCC15 class B | |
Electromagnetic Immunity | ESD immunity | EN/IEC61000-4-2 |
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Voltage dips, short instrumentations & voltage variations | EN/IEC61000-4-11 | |
| Harmonic current emissions | EN/IEC61000-3-2 | |
| Voltage changes, voltage fluctuations and flicker | EN/IEC61000-3-3 | |
| Immunity characteristics | EN55035 |
Specification external AC/DC power supply (PS65)
| Input | |
|---|---|
Voltage range | 100.00 - 240.00VAC ±10%, 50-60Hz |
Current | 1.70A max. |
Stand by power | < 0.21W @ no load |
| Output | |
|---|---|
| Voltage range | 19.00VDC ± 5% |
| Power | 65.00W max. |
| Current range | 3.42A max. |
| Protection | Over voltage, over current, short circuit, over temperature |
| Environmental | |
|---|---|
| Temperature | Operating: 0°C to 40°C |
| General | |
|---|---|
| Efficiency | California's Energy Efficiency Level VI |
Ripple & Noise | 0.30V (p-p) |
Standard output connector | DC barrel jack, 5.50 x 2.50 x 11.00mm |
Housing dimensions (LxWxH) | 95.00 x 50.00 x 25.40mm |
Weight | 270g |
| Cable length | 1600mm ±50mm |
Approvals | Europe | CE |
| International | CB | |
USA & Canada | cULus | |
Australia & New Zealand | RCM | |
| Russia & Eurasian Customs Union | EAC | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
| India | BIS | |
| Taiwan | BSMI | |
| Mexico | NOM | |
| Singapore | Safety Mark | |
| United Kingdom | UKCA | |
| Morocco | CMIM |
Le chargeur de batterie standard RRC-SMB-FPC est homologué dans le monde entier
