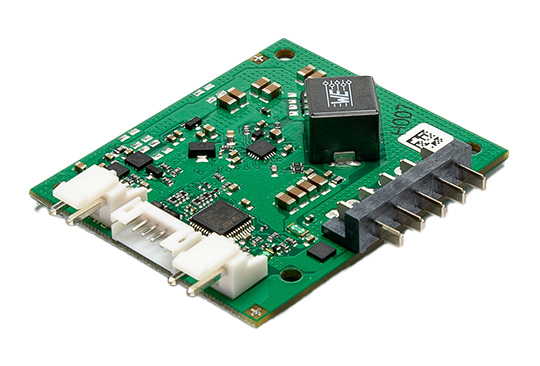

RRC-PMM240
Module de gestion de la charge pour applications mobiles
Non recommandé pour les nouveaux designs
Utilisez notre nouvelle RRC-PMM20 module de gestion d'énergie à la place.
- Puissance de sortie maximale de 240W pour l'application
- Puissance de charge maximale de la batterie de 82W
- Sélection automatique de la source d'alimentation
- Large plage de tension d'entrée DC
- Convient aux blocs-batteries standard du facteur de forme RRC20xx
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-PMM240
Fiche produit RRC-PMM240
Specification
| Power supply Input | |
|---|---|
| Input voltage range | Min. Battery charge voltage +1.00V Max. 24.00VDC |
| Total input power | 192.00W max. |
| Input current | 8.00A max. |
| Input fuse | 12.00A |
| Portection | Reverse polarity, short current |
| Application Output | |
|---|---|
| Output voltage range | Equal to DC input voltage if external DC power supply is present. |
| Total output power | 240.00W max. |
| Output current | 10.00A max. |
| Output fuse | 12.00A |
| Power Management | |
|---|---|
| Automatic power source selection with seamless transition between external DC power supply and battery | |
| Battery Input / Output | |
|---|---|
| Battery charge voltage | Up to 19.20V (± 0.5%) |
| Battery charge current | Up to 6.20A (± 3%) |
| Battery charge power | Up to 82.00W |
| Battery discharge current | 10.00A max. |
| Protection | Battery short circuit, over temperature, over voltage, over current & reverse polarity |
| Standby current | Typical 1.00mA |
| Environmental Condition & User Interface | |
|---|---|
| Operating Temperature | -20° to +60°C |
| Transport & Storage Temperature | -20° to +60°C |
| Relative Humidity | 5% - 95% non-condensing |
| Ambient pressure | 500-1070hPa |
| User Interface | |
|---|---|
| UI via GPIO / available info | Charging: yes/no |
| SMBus commands to set | Charge current limit, input current limit |
| Battery information available | via standard SMBus |
| Battery architecture | DC input voltage | Power supply wattage @ 4.00A max input current | Power supply wattage @ 8.00A max input current |
|---|---|---|---|
1SxP | 6.00VDC | ≥30.00W | ≥60.00W |
2SxP | 12.00VDC | ≥48.00W | ≥96.00W |
3SxP | 15.00VDC | ≥64.00W | ≥128.00W |
4SxP | 19.00VDC | ≥80.00W | ≥160.00W |
| Reglatory Approvals | |
|---|---|
| International | IEC60601-1(ed.3), IEC60601-1(ed.3);am1 |
| USA | ANSI/AAMI ES60601-1:2005/(R)2012 |
| Canada | CAN/CSA-C22.2 NO. 60601-1:14 |
| Mechanical Details | |
|---|---|
| Boards dimensions (LxWxH) | 60.00mm x 50.00mm x 11.00mm, without cables and connectors |
| Weight | 22g |
| Connectors | DC input & DC output (2 pin), User interface (6 pin), Battery connector (5 pin smart battery connector) |
