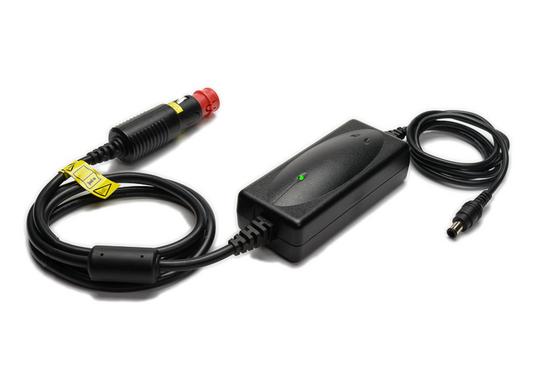

CAR4A
Adaptateur de voiture 60W
- Large plage de tension d'entrée de 9-32V
- Max. Puissance de sortie 72W
- Connecteur de sortie individuel configurable
- Connecteur d'entrée voiture/camion
Vous souhaitez obtenir plus d'informations ?
Downloads CAR4A
Fiche produit CAR4A
Specification
| Input | |
|---|---|
| Voltage range | 10.50 - 32.00VDC |
| Standby current | Typical 77.00mA @ 10.50V input Typical 54.00mA @ 32.00V input |
| Input fuse | 10.00A |
| Protection | Reverse polarity (input fuse), Under voltage protection (Transient suppression circuit) |
| Output | |
|---|---|
| Voltage range | 3.00 - 24.00V nominal |
| Power | 60.00W cont. |
| Initial set tolerance | ±5% max. |
| Load regulation | - 0.10V max. / A |
| Line regulation | ±1% max. |
| Ripple & noise | < 0.30V pk-pk |
| Current limit | Constant current, 4.00A max. |
| Protection | Short circuit |
Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: -20°C to 35°C (35°C to 50°C, derating 35%) |
| Pressure & altitude | Operating: 1200hPa to 570hPa (max. 4600m above sea level) |
| Humidity | 5 to 95% r.H., non condensing |
| General | |
|---|---|
| Input connector | Cigarette lighter adapter |
| Output connector | Customer-specific |
| Efficiency | typical 86% at 100% load |
| MTBF | 20000h @ 25°C ambient temperature and GB per MIL-HDBK217F |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU |
| Indicator | Single green LED |
| Ingress protection rating | IEC60529, IP40 |
| Regulatory approvals | Europe | CE |
| United Kingdom | UKCA | |
| USA & Canada | UL60950-1 | |
| Australia & New Zealand | RCM | |
| Electromagnetic emissions | Europe | EN55011/EN55022 classB, EN55024, EN55014-1 |
| USA & Canada | FCC15 class B | |
| Electromagnetic immunity | ESD immunity | IEC61000-4-2, 4kV contact, 8kV air |
| Electromagnetic field immunity | IEC61000-4-3, 80-1000MHz, 10V/m, AM 80% 1kHz, PM ED50% 200Hz | |
| Electrical fast transient/burst immunity test | IEC61000-4-4, +/-1kV, 5/50ns | |
| Surge immunity test | IEC61000-4-5, +/-0.5kVsym, 1.2/50(8/20)μs | |
| Conducted Immunity | IEC61000-4-6, 0.15-80MHz, 10V, 80%, 1KHz, AM, CDN-M2 | |
| Immunity | IEC61000-6-1 | |
| Impulses | DIN40839 part 1 |
- Other approvals on request
Housing dimensions (LxWxH) | 111.00 x 48.00 x 35.00mm, without cables and connectors |
Input cable length | 100cm ±5% |
Output cable length | 100cm ±5% |
Weight | approx. 200g, without cables, connectors and wall-mount kit |
Homologations CAR4A
